Audio · Sold out

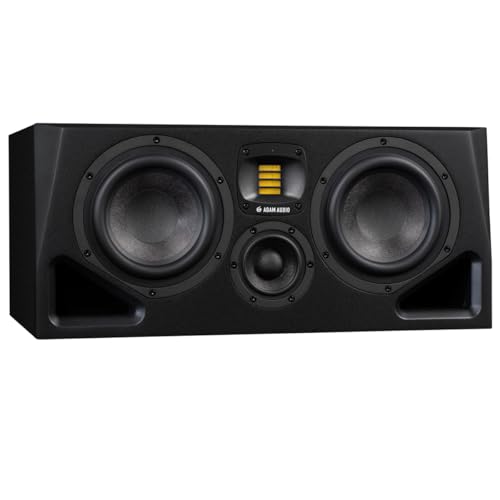

ADAM Audio A77H Powered Studio Monitor
€1479.45
Description
ADAM Audio A77H is an active three-way midfield monitor with dual 7-inch MLM woofers, a 3.5-inch DCH midrange driver, and an X-ART tweeter in a rotatable HPS waveguide. Onboard DSP supports Pure and UNR voicings, room adaptation, Ethernet control with A Control, and Sonarworks SoundID Reference integration.
Key specifications
DriverDual 7-inch horizontal monitor
TuningDSP-based voicing
WorkflowMidfield mixing / production room
FeaturesAdvanced DSP Features
ConnectivityBalanced XLR and unbalanced RCA audio inputs; RJ45 Ethernet control
Product TypeActive three-way midfield studio monitor (single unit)
Drivers2 × 7-inch MLM woofers; 3.5-inch DCH midrange
TweeterX-ART with rotatable HPS waveguide (120° H × 70° V)
Frequency Response37 Hz–41 kHz (-3 dB); 34 Hz–45 kHz (-6 dB)
Crossover Frequencies400 Hz and 3.0 kHz
Maximum SPL106 dB SPL peak per speaker at 1 m (sine bursts)
Amplification250 W woofer + 70 W midrange + 20 W tweeter peak
Input Impedance9 kΩ balanced / 33 kΩ unbalanced
Signal Processing24-bit conversion at 96 kHz; 0–10 ms delay; per-driver peak and thermal protection
VoicingsPure and UNR; extended tuning through A Control
Room AdaptationBackplate EQ, six-band PEQ through A Control, and Sonarworks SoundID Reference integration
Power100–240 V, 50/60 Hz; 220 W maximum consumption
Dimensions236 × 531 × 350 mm (H × W × D)
Weight17.1 kg
- Condition
- New
- Shipping
- Shipping calculated by destination in cart.
- Policies
- Shipping · 14-day returns
More details
- What’s included
- One A77H loudspeaker
- Power cable
- Quick Start Guide
- Manufacturer documentation
