Capture · Sold out
Atomos Shogun Ultra
€1017.53
Description

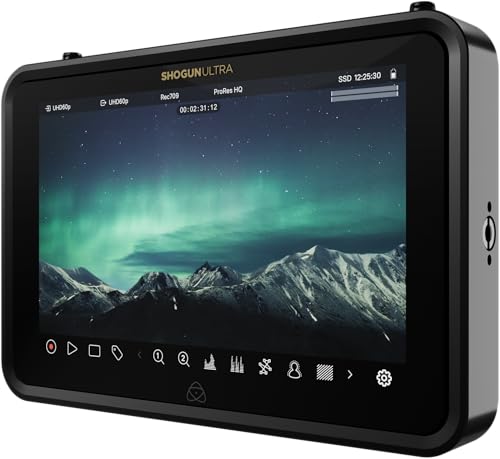

Atomos Shogun Ultra is a 7-inch HDR HDMI and 12G-SDI monitor-recorder with a 1920 × 1200, 2000-nit touchscreen. It records ProRes RAW, ProRes, DNx and H.265, supports camera-dependent RAW inputs up to 8Kp30, and adds Wi-Fi 6E, Gigabit Ethernet, AirGlu timecode, HDMI/SDI conversion and camera-to-cloud workflows.
Key specifications
Display7-inch HDR monitor
I/O12G-SDI and HDMI
RecordingProRes RAW and 4K60
WorkflowCamera-to-cloud and monitor-recorder
Brightness / Color2000 nits ±10%, 10-bit (8+2 FRC), Rec.709, HDR monitoring with HLG/PQ and 3D LUT support

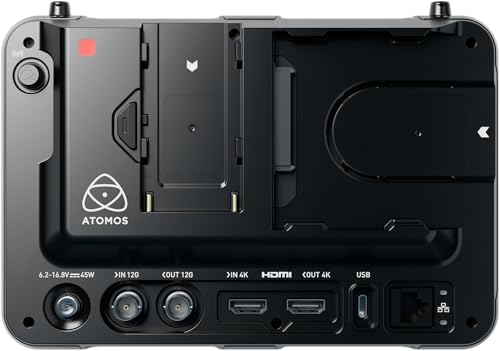

Video Inputs1 × HDMI 2.0 and 1 × 12G-SDI; 8/10-bit video and RAW up to 12-bit
Video ConversionHDMI-to-SDI and SDI-to-HDMI conversion supported
Recording CodecsApple ProRes RAW; ProRes HQ/422/LT; Avid DNxHD/DNxHR; H.265
Supported Input MaximaSubject to camera and protocol compatibility: 8K RAW up to 8Kp30 via HDMI, 6K RAW up to 6Kp60 via HDMI or 6Kp30 via SDI, and 4K RAW up to 4Kp120 via HDMI/SDI
Network / CloudWi-Fi 6E, 1GbE, camera-to-cloud and simultaneous proxy recording
Sync / AudioAirGlu wireless timecode; 24-bit/48 kHz PCM; 3.5 mm analog audio input and headphone output
Media / PowerMaster Caddy III media; NP-F/L-series battery support; 6.2–16.8 V locking DC input
Dimensions / Weight198 × 133 × 40 mm; 730 g without battery or media
- Condition
- New
- Shipping
- Shipping calculated by destination in cart.
- Policies
- Shipping · 14-day returns
More details
- What’s included
- Shogun Ultra; USB-C PD to DC adapter cable; Master Caddy III; RF antenna; 2 × Wi-Fi antennas; 5 × colored antenna caps; 3 × antenna mount covers; 3.5 mm audio cable; Quick start guide
- Manufacturer documentation
