Blackmagic ATEM Television Studio HD8
€3289.03
Description

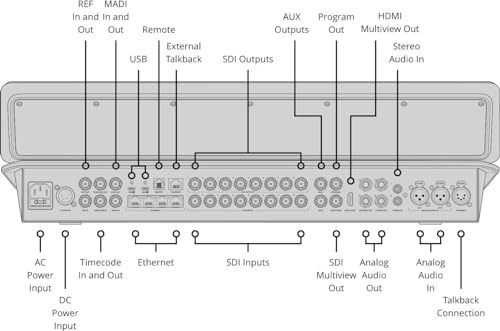

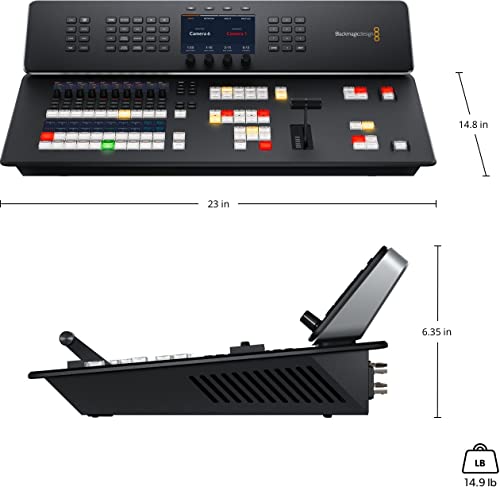

Blackmagic ATEM Television Studio HD8 is an all-in-one HD live production switcher with a built-in broadcast control panel. It uses 8 standards-converted 3G-SDI inputs, 12 SDI video outputs, one HDMI output, hardware streaming, program recording, USB webcam output, SDI/HDMI multiview, talkback, timecode/reference I/O, XLR/RCA/MADI audio, a 4-port Ethernet switch, and AC plus 12 V DC power inputs. This non-ISO HD8 records the program output, not separate ISO files for every input.
Key specifications
Inputs8 scalable 3G-SDI inputs
Outputs12 SDI video outputs, 1 HDMI video output, 1 SDI program output, 2 SDI aux outputs, 2 USB-C webcam outputs
StandardsHD: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98 through 60; SMPTE 292M/296M/424M/425M A/B; 4:2:2, 10-bit, Rec.709
RecordingProgram recorded as H.264 .mp4 with AAC audio to external USB-C media or optional internal M.2 flash memory
StreamingDirect RTMP streaming over Ethernet or shared internet over USB-C
Multiview1 multiview via SDI and HDMI, configurable to 16/13/10/7/4-up views with program, preview, inputs, media players, DSKs, SuperSource, clean feed, labels, and audio meters
Audio2 XLR balanced analog inputs, 2 RCA stereo analog inputs, 32-channel MADI input, talkback XLR, 4 x 1/4-inch analog outputs, 64-channel MADI output up to 50 active
ControlIntegrated broadcast control panel, Ethernet panel connection, RS-422 over RJ12, talkback, tally via optional GPI and Tally Interface
Network / Power4 x RJ45 Ethernet switch supporting 10/100/1000 Base-T; internal 100-240 V AC IEC C14 input and 4-pin XLR 12 V DC input; 100 W max
- Condition
- New
- Shipping
- Shipping calculated by destination in cart.
- Policies
- Shipping · 14-day returns
More details
- What’s included
- ATEM Television Studio HD8; Welcome wallet with QR code for software download
- Manufacturer documentation
