Blackmagic ATEM Television Studio HD8 ISO

Control Surfaces · Sold out

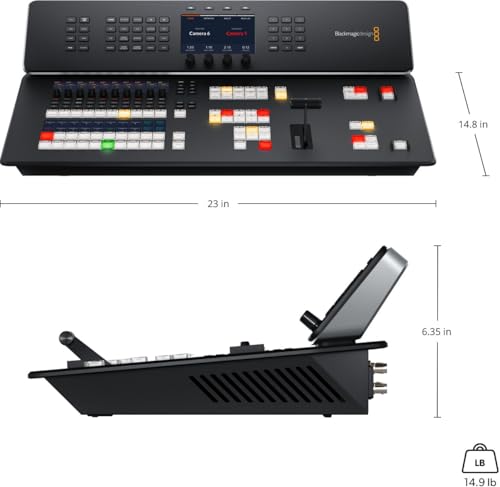

Blackmagic ATEM Television Studio HD8 ISO

€3490.69

Description

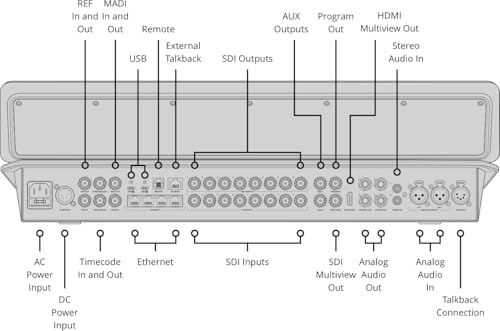

Blackmagic ATEM Television Studio HD8 ISO is the ISO-recording version of the HD8 all-in-one broadcast switcher. It has 8 3G-SDI inputs, 12 SDI video outputs, one HDMI output, hardware RTMP streaming, USB webcam output, SDI/HDMI multiview, XLR/RCA/MADI audio, talkback, timecode/reference I/O, a 4-port Ethernet switch, and integrated panel control. Compared with the non-ISO HD8, it adds separate H.264 ISO recording for SDI inputs and supports up to 8 remote cameras with tally and camera control.

Key specifications

Channels8
Inputs8 standards-converted 3G-SDI inputs; up to 8 streaming/remote sources from compatible Blackmagic cameras
Outputs12 SDI video outputs, 1 HDMI video output, 1 SDI program output, 2 SDI aux outputs, 2 USB-C webcam outputs
StandardsHD: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98 through 60; SMPTE 292M/296M/424M/425M A/B; 4:2:2, 10-bit, Rec.709
ISO RecordingProgram H.264 .mp4 plus SDI inputs as separate H.264 .mp4 ISO files up to 70 Mb/s; DaVinci Resolve .drp program switching project
StreamingDirect RTMP streaming over Ethernet or shared internet over USB-C; remote cameras via local Ethernet or internet
Multiview1 multiview via SDI and HDMI, configurable to 16/13/10/7/4-up views with program, preview, inputs, media players, DSKs, SuperSource, clean feed, labels, and audio meters
Audio2 XLR balanced analog inputs, 2 RCA stereo analog inputs, 32-channel MADI input, talkback XLR, 4 x 1/4-inch analog outputs, 64-channel MADI output up to 50 active; audio recorded as 24-bit/48 kHz WAV
ControlIntegrated panel, Ethernet panel connection, RS-422 over RJ12, talkback, optional tally interface, remote-camera tally and camera control
Network / Power4 x RJ45 Ethernet switch supporting 10/100/1000 Base-T; internal 100-240 V AC IEC C14 input and 4-pin XLR 12 V DC input; 100 W max

Condition
New
Shipping
Shipping calculated by destination in cart.

More details

What’s included
  • ATEM Television Studio HD8 ISO
  • ATEM Television Studio HD8 ISO; Welcome wallet with QR code for software download
Manufacturer documentation
