Audio · Sold out

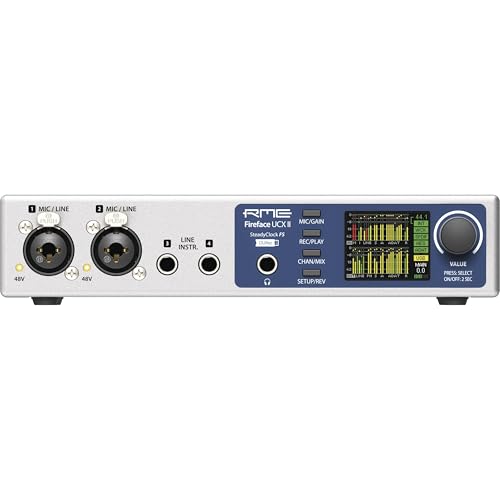

RME Fireface UCX II USB Audio Interface
€1355.07
Description
Portable 40-channel RME interface with two mic preamps, front instrument inputs, eight analog I/O, ADAT, AES/EBU, S/PDIF, word clock, MIDI, TotalMix FX, SteadyClock FS, class-compliant USB and DURec direct USB recording.
Key specifications
InterfaceUSB studio interface
IO20 in / 20 out
WorkflowPortable recording / production
Configured variantFireface UCX II USB audio interface
I/O architecture40-channel interface with 8 analog channels plus ADAT, AES/SPDIF and MIDI
Computer connectionUSB 2.0, compatible with USB 3.0, with class-compliant mode
Analog inputs2 front XLR mic/line, 2 front line/instrument and 4 rear balanced TRS line inputs
Analog outputs6 rear balanced TRS line outputs plus 1 stereo headphone output on channels 7/8
Digital I/OADAT I/O, AES/EBU and S/PDIF via included breakout cable, word clock I/O and MIDI I/O
Resolution24-bit / 192 kHz audio; supported sample rates 28 kHz up to 200 kHz
Direct recordingDURec records inputs or outputs directly to USB storage media up to 2 TB
DSP and mixerTotalMix FX with 800-channel, 46-bit internal routing/mixer engine plus Room EQ
Dimensions and weight258 x 44 x 155 mm including rack ears; 910 g
- Condition
- New
- Shipping
- Shipping calculated by destination in cart.
- Policies
- Shipping · 14-day returns
More details
- What’s included
- ADAT I/O, AES/EBU and S/PDIF via included breakout cable, word clock I/O and MIDI I/O
- Fireface UCX II; Cable USB 2.0, 1.8 m (6 ft); Optical cable (TOSLINK), 2 m (6.6 ft); B0968 Digital breakout cable (XLR/RCA); External switched power supply, lockable connector, DC 12 V 24 W; Power cord
- Manufacturer documentation
